About Preflight Checks and Support Bundles
This topic provides an introduction to preflight checks and support bundles, which are provided by the Troubleshoot open source project.
Overview
Preflight checks and support bundles are provided by the Troubleshoot open source project, which is maintained by Replicated. Troubleshoot is a kubectl plugin that provides diagnostic tools for Kubernetes applications. For more information, see the open source Troubleshoot documentation.
Preflight checks and support bundles analyze data from customer environments to provide insights that help users to avoid or troubleshoot common issues with an application:
- Preflight checks run before an application is installed to check that the customer environment meets the application requirements.
- Support bundles collect troubleshooting data from customer environments to help users diagnose problems with application deployments.
Preflight checks and support bundles consist of collectors, redactors, and analyzers that are defined in a YAML specification. When preflight checks or support bundles are executed, data is collected, redacted, then analyzed to provide insights to users, as illustrated in the following diagram:
View a larger version of this image
For more information about each step in this workflow, see the sections below.
Collect
During the collection phase, collectors gather information from the cluster, the environment, the application, and other sources.
The data collected depends on the types of collectors that are included in the preflight or support bundle specification. For example, the Troubleshoot project provides collectors that can gather information about the Kubernetes version that is running in the cluster, information about database servers, logs from pods, and more.
For more information, see the Collect section in the Troubleshoot documentation.
Redact
During the redact phase, redactors censor sensitive customer information from the data before analysis. By default, the following information is automatically redacted:
- Passwords
- API token environment variables in JSON
- AWS credentials
- Database connection strings
- URLs that include usernames and passwords
For Replicated KOTS installations, it is also possible to add custom redactors to redact additional data. For more information, see the Redact section in the Troubleshoot documentation.
Analyze
During the analyze phase, analyzers use the redacted data to provide insights to users.
For preflight checks, analyzers define the pass, fail, and warning outcomes, and can also display custom messages to the user. For example, you can define a preflight check that fails if the cluster's Kubernetes version does not meet the minimum version that your application supports.
For support bundles, analyzers can be used to identify potential problems and share relevant troubleshooting guidance with users. Additionally, when a support bundle is uploaded to the Vendor Portal, it is extracted and automatically analyzed. The goal of analyzers in support bundles is to surface known issues or hints of what might be a problem to make troubleshooting easier.
For more information, see the Analyze section in the Troubleshoot documentation.
Preflight Checks
This section provides an overview of preflight checks, including how preflights are defined and run.
Overview
Preflight checks let you define requirements for the cluster where your application is installed. When run, preflight checks provide clear feedback to your customer about any missing requirements or incompatibilities in the cluster before they install or upgrade your application. For KOTS installations, preflight checks can also be used to block the deployment of the application if one or more requirements are not met.
Thorough preflight checks provide increased confidence that an installation or upgrade will succeed and help prevent support escalations.
About Host Preflights
Host preflight checks automatically run during Replicated Embedded Cluster and Replicated kURL installations on a VM or bare metal server. The purpose of host preflight checks is to verify that the user's installation environment meets the requirements of the Embedded Cluster or kURL installer, such as checking the number of CPU cores in the system, available disk space, and memory usage. If any of the host preflight checks fail, installation is blocked and a message describing the failure is displayed.
Host preflight checks are separate from any application-specific preflight checks that are defined in the release, which run in the Admin Console before the application is deployed with KOTS. Both Embedded Cluster and kURL have default host preflight checks that are specific to the requirements of the given installer. For kURL installations, it is possible to customize the default host preflight checks.
For more information about the default Embedded Cluster host preflight checks, see Host Preflight Checks in Using Embedded Cluster.
For more information about kURL host preflight checks, including information about how to customize the defaults, see Customizing Host Preflight Checks for kURL.
Defining Preflights
To add preflight checks for your application, create a Preflight YAML specification that defines the collectors and analyzers that you want to include.
For information about how to add preflight checks to your application, including examples, see Defining Preflight Checks.
Blocking Installation with Required (Strict) Preflights
For applications installed with KOTS, it is possible to block the deployment of a release if a preflight check fails. This is helpful when it is necessary to prevent an installation or upgrade from continuing unless a given requirement is met.
You can add required preflight checks for an application by including strict: true for the target analyzer in the preflight specification. For more information, see Block Installation with Required Preflights in Defining Preflight Checks.
Running Preflights
This section describes how users can run preflight checks for KOTS and Helm installations.
KOTS Installations
For installations with KOTS, preflight checks run automatically as part of the installation process. The results of the preflight checks are displayed either in the KOTS Admin Console or in the KOTS CLI, depending on the installation method.
Additionally, users can access preflight checks from the Admin Console after installation to view their results and optionally re-run the checks.
The following shows an example of the results of preflight checks displayed in the Admin Console during installation:
View a larger version of this image
For more information about the KOTS installation process, see About Installing an Application.
Helm Installations
For installations with Helm, the preflight kubectl plugin is required to run preflight checks. The preflight plugin is a client-side utility that adds a single binary to the path. For more information, see Getting Started in the Troubleshoot documentation.
Users can optionally run preflight checks before they run helm install. The results of the preflight checks are then displayed through the CLI, as shown in the example below:
View a larger version of this image
For more information, see Running Preflight Checks for Helm Installations.
Support Bundles
This section provides an overview of support bundles, including how support bundles are customized and generated.
Overview
Support bundles collect and analyze troubleshooting data from customer environments, helping both users and support teams diagnose problems with application deployments.
Support bundles can collect a variety of important cluster-level data from customer environments, such as:
- Pod logs
- Node resources and status
- The status of replicas in a Deployment
- Cluster information
- Resources deployed to the cluster
- The history of Helm releases installed in the cluster
Support bundles can also be used for more advanced use cases, such as checking that a command successfully executes in a pod in the cluster, or that an HTTP request returns a succesful response.
Support bundles then use the data collected to provide insights to users on potential problems or suggested troubleshooting steps. The troubleshooting data collected and analyzed by support bundles not only helps users to self-resolve issues with their application deployment, but also helps reduce the amount of time required by support teams to resolve requests by ensuring they have access to all the information they need up front.
About Host Support Bundles
For installations on VMs or bare metal servers with Replicated Embedded Cluster or Replicated kURL, it is possible to generate a support bundle that includes host-level information to help troubleshoot failures related to host configuration like DNS, networking, or storage problems.
For Embedded Cluster installations, a default spec can be used to generate support bundles that include cluster- and host-level information. See Generating Host Bundles for Embedded Cluster.
For kURL installations, vendors can customize a host support bundle spec for their application. See Generating Host Bundles for kURL.
Customizing Support Bundles
To enable support bundles for your application, add a support bundle YAML specification to a release. An empty support bundle specification automatically includes several default collectors and analzyers. You can also optionally customize the support bundle specification for by adding, removing, or editing collectors and analyzers.
For more information, see Adding and Customizing Support Bundles.
Generating Support Bundles

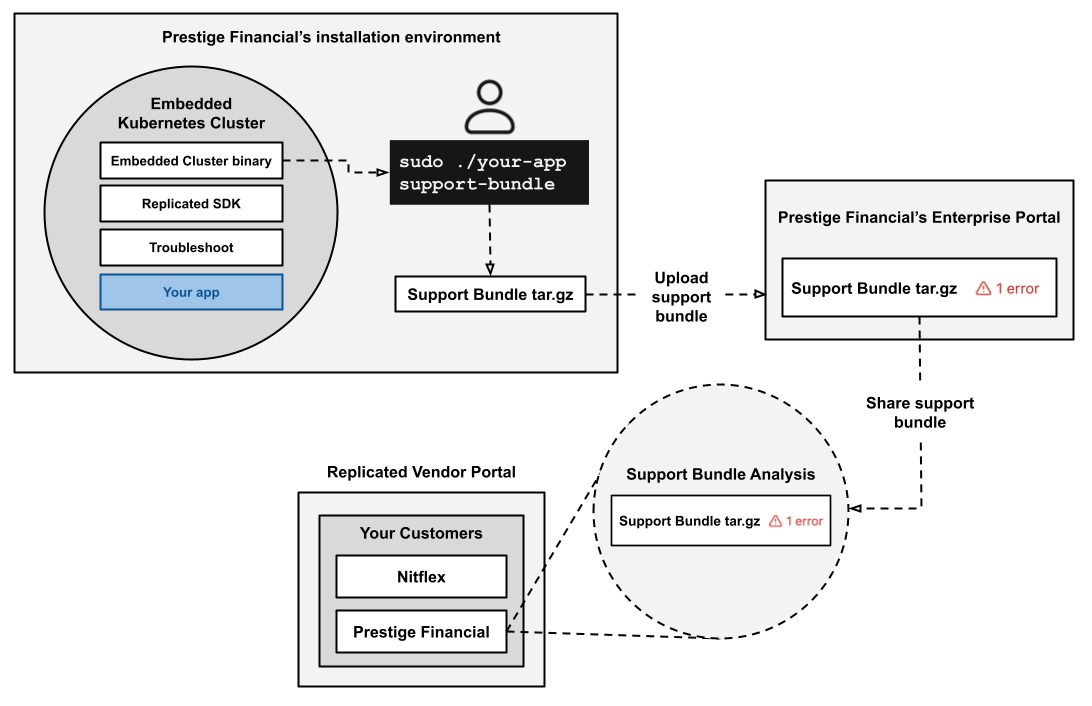

Users generate support bundles as tar.gz files from the command line, using the support-bundle kubectl plugin. Your customers can share their support bundles with your team by sending you the resulting tar.gz file.
KOTS users can also generate and share support bundles from the KOTS Admin Console.
For more information, see Generating Support Bundles.
