Test in Air Gap Environments (Beta)

This topic describes how to change the network policy of a virtual machine (VM) or a VM-based cluster with Replicated Compatibility Matrix (CMX), and how to collect and analyze network events to understand your application's behavior in air-gapped environments.

Set Network Policy to airgap

VMs and VM-based clusters created with CMX can use one of the following network policies:

Network Policy	Description
open	No restrictions on network traffic.
airgap	Restrict all network traffic.

By default, all VMs and clusters are created with an open network policy. You can change the network policy to airgap to simulate an air-gapped environment with no outbound internet access. This airgap network policy is particularly useful for previewing how your application will perform in air-gapped end customer environments.

Network policies are configured at the network level and apply to all VMs and VM-based clusters within the network.

For VM-Based Clusters

To set the network policy of a VM-based cluster:

1. Create a cluster:

   replicated cluster create --distribution VM_BASED_DISTRIBUTION

   Where VM_BASED_DISTRIBUTION is the target VM-based cluster distribution. For a list of supported distributions, see VM Clusters.

2. Watch until the cluster status is running:

   replicated cluster ls --watch

3. Access the cluster in a shell:

   replicated cluster shell CLUSTER_ID

   Where CLUSTER_ID is the ID of the cluster that you created from the output of the cluster ls command.

4. Change the network policy to airgap:

   replicated network update NETWORK_ID --policy airgap

   Where NETWORK_ID is the ID of the network from the output of the cluster ls command.

5. Verify that the cluster's policy is airgap and the status is running:

   replicated cluster ls

   ID       NAME                STATUS       CREATED                 EXPIRES                POLICY   HAS REPORT
   bdeb3515 gifted_antonelli    running      2025-01-28 18:45 PST    2025-01-28 19:45 PST   airgap   off

   The air gap network is enabled when the status is running.

6. (Optional) To verify that there is no outbound connectivity from the cluster, enable network reporting and view network events. See Collect and View Network Reports.

7. (Optional) Test an air gap installation of your application in the cluster. See Install and Update with Helm in Air Gap Environments.

For VMs

To set the network policy of a VM:

1. Create a VM:

   replicated vm create --distribution ubuntu

2. Wait until the VM status is running:

   replicated vm ls

3. SSH onto the VM:

   ssh VM_ID@replicatedvm.com

   Where VM_ID is the ID of the VM from the output of the vm ls command.

   For more information and additional options, see Connect to a VM.

4. Set the network policy to airgap:

   replicated network update NETWORK_ID --policy airgap

   Where NETWORK_ID is the ID of the network from the output of the vm ls command.

   Example:

   replicated network update 85eb50a8 --policy airgap

   ID       NAME                STATUS        CREATED                 EXPIRES                POLICY   HAS REPORT
   85eb50a8 silly_rosalind      updating      2025-01-28 16:16 PST    2025-01-28 17:18 PST   airgap   off

5. (Optional) To verify that there is no outbound connectivity from the VM, enable network reporting and view network events. See Collect and View Network Reports.

Collect and View Network Reports

CMX network reporting helps you understand your application's network activity. To provide flexibility in testing, you can enable network reporting to capture all network activity, whether the network policy is set to open or airgap. Even when the network policy is set to airgap and network egress is blocked, all connection attempts and DNS queries are still captured in the report. This helps you identify unexpected network calls before deploying to an air-gapped environment.

Network reporting is not enabled by default. For information about how to collect and view reports through the Vendor Portal or the Replicated CLI, see the sections below.

There are two types of network reports:

Report Type	Contents
Running Report See all network events captured in near real-time	Timestamp (with microseconds) Source IP, Source Port, Source PID Source Command, Source Pod Destination IP, Destination Port DNS Query Name Protocol Likely Service
Report Summary Aggregated analysis of captured network events	Total Events Count Time Range (start/end) Report Creation Date Domain Names Requested (Domain, Count) Destination IP Addresses Connected To (IP, Port, Count) Source Details (expandable): Source IP, Service, Command, Pod

Vendor Portal

To set the network policy and collect and view reports in the Vendor Portal:

1. Go to Compatibility Matrix > Network Policy.

2. To collect a network report, toggle on the switch under Reporting.

3. (Optional) Toggle from open to airgap under Policy Type to block all network egress.

4. Where available, click "View report" under Report to see the reporting table. You can also click "Export JSON" to download the raw report data.

   note

   When reporting is ON for an active network, all network events display in a Running Report. Once the network is terminated, the Report Summary is automatically generated.

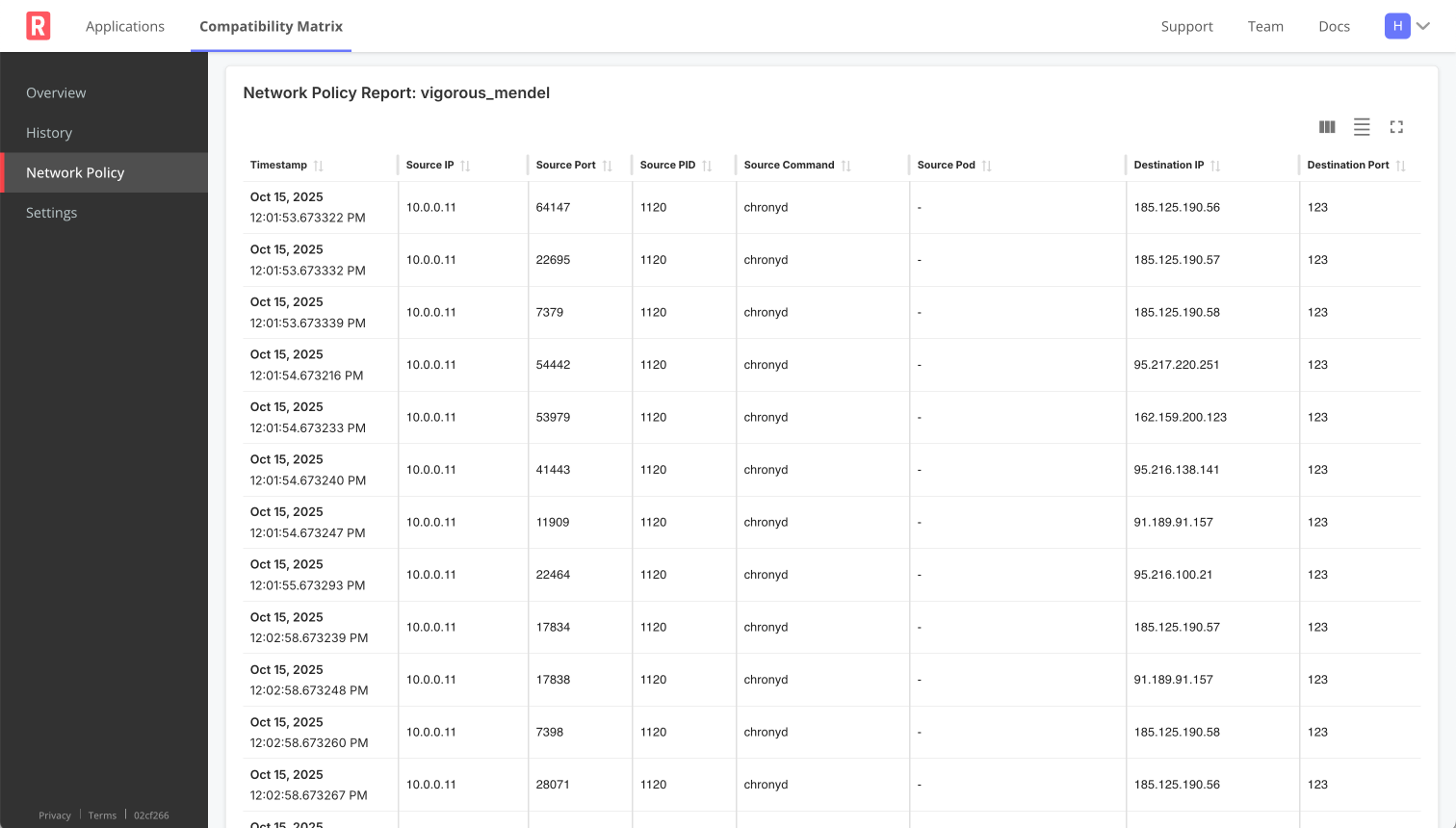

   Running Report



   View a larger version of this image

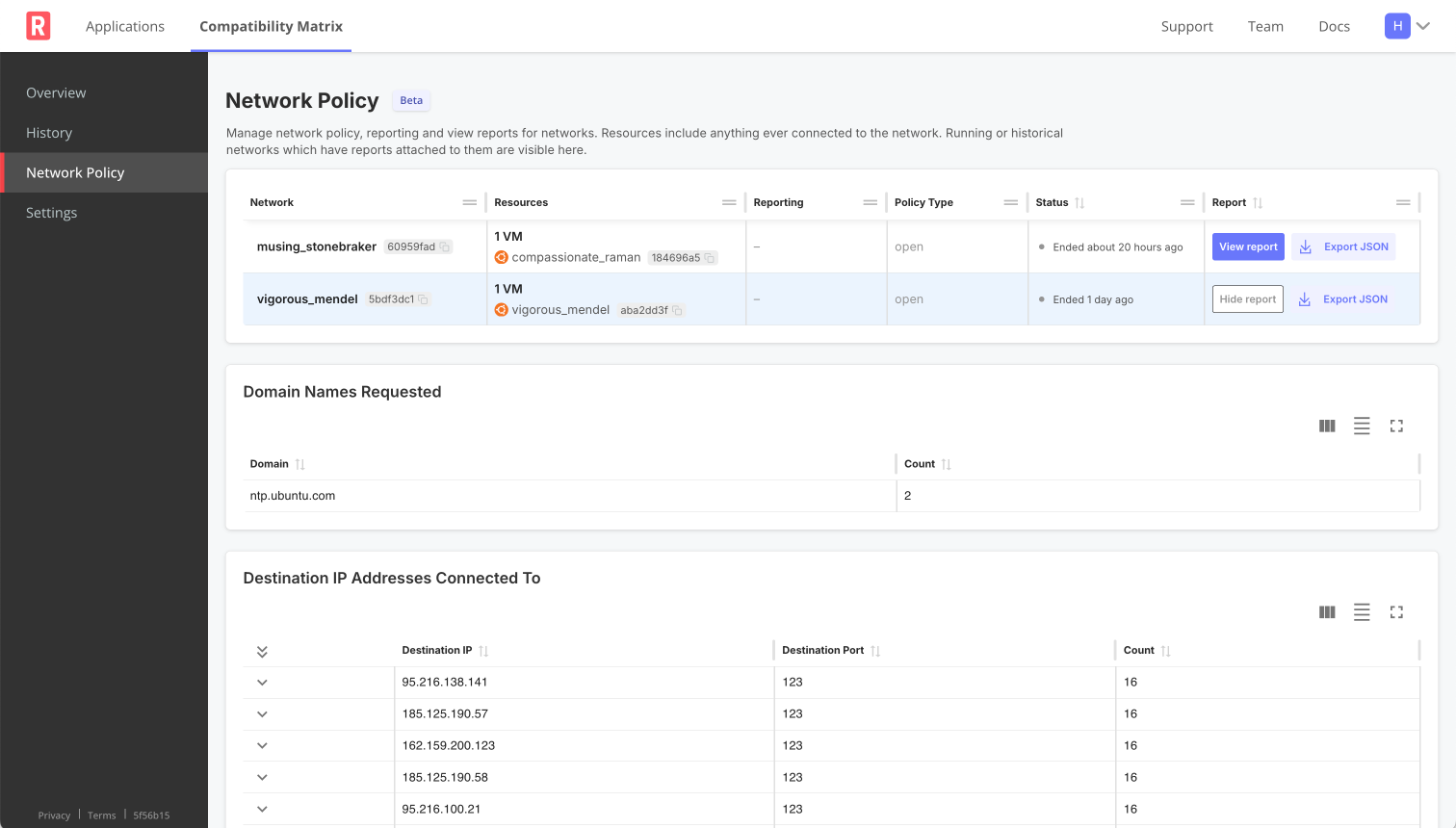

   Report Summary



   View a larger version of this image

CLI

To collect and view a network report from the CLI:

1. Turn on network reporting:

   replicated network update NETWORK_ID --collect-report

   Where NETWORK_ID is the ID of the network. You can get the network ID by running replicated network ls.

2. (Optional) Confirm that reporting is ON for the network:

   replicated network ls

   Example output:

   ID          NAME                   STATUS          CREATED                    EXPIRES                    POLICY        HAS REPORT
   a1b2c3d4    example_network_1      running         2025-01-28 16:04 PST       2025-01-28 18:06 PST       open          off
   e5f6g7h8    example_network_2      running         2025-01-28 12:10 PST       2025-01-28 20:11 PST       airgap        on

3. View the network report:

   See network event summary that aggregates all unique domains and destination IPs, with connection counts and other details (JSON format):

   replicated network report NETWORK_ID --summary

   See all network events (JSON format):

   replicated network report NETWORK_ID

   Watch as new network events occur (JSON format):

   replicated network report NETWORK_ID --watch

   note

   Network events are batched for display in the report, so appear with a short delay.
